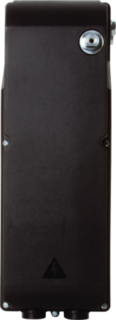

PEGASO BCJA625L11

Product code P925203 00006
  • DIMENSIONAL DIAGRAM
technical design PEGASO B CJA UP

Electromechanical operator, deadman, for industrial sectional doors with max surface area 25 m² and use Semi intensive. Power supply 230 V. max speed 24 Rpm. max torque 70 nm. Chain release. IP54.

PLUS
  • Management system for stop and intermediate limit switches based on absolute encoder technology with settable zero position.

  • Control unit with deadman feature on-board operator

  • Ready-to-use cables with quick-fit connectors.

Assistance

Attention: To benefit from the official warranty on Bft products purchased online, you must check that the retailer is approved by Bft.

Technical Data
Type of limit switch Absolute encoder
U-Link No
Power input 750 w
Locking Mechanical
Release Chain release
Frequency of use Semi intensive
Protection rating Ip54
Environmental conditions -10 ÷ 50 °c
Door surface area 25 m²
Nominal voltage 230 v
Shaft diameter 25.4 mm
Max surface area 25 m²
Travel 18
Accessories

Recommended accessories.

  • COR 40 Cod. N733149 Z40 gear kit complete with accessories for industrial sectional doors, for 1 " (25.4 mm) shafts. Z40 gear kit complete with accessories for industrial sectional doors, for 1 " (25.4 mm) shafts.

  • PEGASO UP CONTROL 5 Cod. D121624 Cable with pre-wired OPEN - STOP - CLOSE keypad for PEGASO UP operators. For adjusting motor limit switches from floor level. Length 5 m. Cable with pre-wired OPEN - STOP - CLOSE keypad for PEGASO UP operators. For adjusting motor limit switches from floor level. Length 5 m.

  • PIG 14/ULISSE S Cod. N733336 Z14 pinion gear for industrial sectional doors, for 1 " (25.4 mm) shafts. Z14 pinion gear for industrial sectional doors, for 1 " (25.4 mm) shafts.

  • SFZ Cod. N733121 Additional fixing bracket kit. To be used on chain drive installations. Additional fixing bracket kit. To be used on chain drive installations.

  • COR 30 Cod. N733148 Z30 gear kit complete with accessories for industrial sectional doors, for 1 " (25.4 mm) shafts. Z30 gear kit complete with accessories for industrial sectional doors, for 1 " (25.4 mm) shafts.

  • PIG 12/ULISSE S Cod. N733338 Z12 pinion gear for industrial sectional doors, for 1 " (25.4 mm) shafts. Z12 pinion gear for industrial sectional doors, for 1 " (25.4 mm) shafts.

  • PEG CCP Cod. N999468 Extension for PEGASO C operators release chain. Length 4 m. Extension for PEGASO C operators release chain. Length 4 m.

  • PIG 30/ULISSE S Cod. N733337 Z30 pinion gear for industrial sectional doors, for 1 " (25.4 mm) shafts. Z30 pinion gear for industrial sectional doors, for 1 " (25.4 mm) shafts.

  • PEGASO CABLE TRI Cod. D121632 Pre-wired power supply cable for PEGASO three-phase operators. Length 1 m. Pre-wired power supply cable for PEGASO three-phase operators. Length 1 m.

  • PEGASO UP CONTROL 10 Cod. D121625 Cable with pre-wired OPEN - STOP - CLOSE keypad for PEGASO UP operators. For adjusting motor limit switches from floor level. Length 10 m. Cable with pre-wired OPEN - STOP - CLOSE keypad for PEGASO UP operators. For adjusting motor limit switches from floor level. Length 10 m.

  • PEGASO ADA Cod. N733449 PEGASO ADA adapter for installation on doors with 1"1/4 shaft. PEGASO ADA adapter for installation on doors with 1"1/4 shaft.

  • PIG 18/ULISSE S Cod. N733339 Z18 pinion gear for industrial sectional doors, for 1 " (25.4 mm) shafts. Z18 pinion gear for industrial sectional doors, for 1 " (25.4 mm) shafts.

  • PEGASO CABLE MONO Cod. D121631 Pre-wired power supply cable for PEGASO single phase operators. Length 1 m. Pre-wired power supply cable for PEGASO single phase operators. Length 1 m.

View all the accessories
