Low voltage hydraulic motor for swing gates

SUB BT

Product code P930123 00001

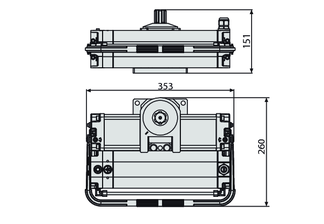

  • DIMENSIONAL DIAGRAM
technical design SUB BT
Technologies
  • The thrust required to operate safely.
    A smart torque management system based on the microprocessor technology of BFT control units.
    Acquiring data from several indicators, it updates the level of thrust required to perform the operation.
    D-Track also facilitates the installer in providing for the certifications required by law.
    Conventional control units do not "read" the exact position of the gate and consequently apply constant thrust levels, without ensuring stable sensitivity during the opening and closing operations.
    BFT control devices record the slightest variation in the gate or door force, for example due to differences in temperature or wear, constantly supplying the optimum torque to the motor.
    A conventional control unit could not detect these thrust variations, which would result in it indicating the presence of non-existent obstacles.
    The BFT system thus guarantees the maximum safety and perfect functioning of the equipment, no matter what the climactic and temperature conditions and degree of mechanical wear.

  • A precise, safe and reliable technology.
    Bft 24V technology ensures optimum performance with a precise adjustment of slowdown in closing and opening.
    Safety is another key aspect, ensuring the immediate stopping and reversal of movement in the presence of obstacles.
    The efficiency of the technology is a guarantee of the product's reliability.

  • The new coding system for direct cloning of remote controls.
    Based on microprocessor technology, this system allows the cloning of any MITTO remote control in a MITTO REPLAY remote control.
    In fact, the first remote control "teaches" the second one the correct code which is automatically saved in the receiver the first time it is used.
    Everything occurs at the highest levels of security thanks to the use of the Rolling Code safe transmission system.

Low voltage, in-ground irreversible hydraulic operator for hinged leaves up to 2.5 m. weight 800 kg.

PLUS
  • Control unit with programming display and new, simplified scenario-based programming

  • Fully adjustable mechanical stops inside the operator

  • The monoblock structure gives the possibility of a very neat installation that is extremely reliable over time.

Compatible control panel
THALIA
Assistance

Attention: To benefit from the official warranty on Bft products purchased online, you must check that the retailer is approved by Bft.

Technical documentation
Technical Data
Max. weight of door/gate wing 800 kg
Max. width of door/gate wing 2.5 m
Motor voltage 24 v
Impact reaction D-track
Slowdown Yes
U-Link No
Control unit Thalia p
Board power supply 230 v
Power input 300 w
Maximum angle 120 °
Cycle time 13 s
Locking Open/close hydraulics
Release Lever or lever with personalised key
Frequency of use Very intensive
Protection rating Ip67
Environmental conditions -20 ÷ 60 °c
Imperial measurements

The data shown are for information purposes only.

Max. weight of door/gate wing 1763.696 lbs
Max. width of door/gate wing 8.2021 ft
Motor voltage 24 v
Impact reaction D-track
Slowdown Yes
Control unit Thalia p
Board power supply 230 v
Power input 300 w
Maximum angle 120 °
Cycle time 13 s
Locking Open/close hydraulics
Release Lever or lever with personalised key
Frequency of use Very intensive
Protection rating Ip67
Environmental conditions -4 ÷ 140 °f
Accessories

Recommended accessories.

  • SCP Cod. N733502 Release for ELI 250 and SUB BT with personalized key. Release for ELI 250 and SUB BT with personalized key.

  • SCC Cod. N733392 Release for ELI 250N and SUB BT with lever key. Release for ELI 250N and SUB BT with lever key.

  • THALIA Cod. D113745 00002 Control panel with display for one or two 24V electromechanical operators for swing gates. Control panel with display for one or two 24V electromechanical operators for swing gates.

  • FCS BT Cod. N733480 00001 Foundation box for SUB BT series operators. Foundation box for SUB BT series operators.

  • BBT BAT Cod. P125020 Set of backup batteries for THALIA and THALIA P. Set of backup batteries for THALIA and THALIA P.
