Hydraulic motors for swing gates

P4,5

Product code P935061 00001

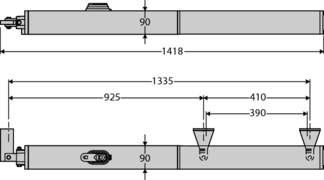

  • DIMENSIONAL DIAGRAM
technical design P7 / P4,5
Technologies
  • The new coding system for direct cloning of remote controls.
    Based on microprocessor technology, this system allows the cloning of any MITTO remote control in a MITTO REPLAY remote control.
    In fact, the first remote control "teaches" the second one the correct code which is automatically saved in the receiver the first time it is used.
    Everything occurs at the highest levels of security thanks to the use of the Rolling Code safe transmission system.

Reversible hydraulic operator for swing gates up to 4.5 m. 500 kg in weight. Cycle time 28+slowdown s. Useful travel 390 mm. max angle 123 °.

PLUS
  • The rear articulated brackets and jointed rod make installation simple and reliable in all situations.

  • The brass release knob, protected with a personal key, facilitates the manual opening of the gate in the event of a power cut.

  • The closing slowdown guarantees silent, smooth movements on even the biggest gates. Also, the adjustment screw makes it possible to adapt the slowdown intensity to needs of each situation.

Recommended control panel
RIGEL 5
ALCOR N
Compatible control panel
ALPHA SD
Assistance

Attention: To benefit from the official warranty on Bft products purchased online, you must check that the retailer is approved by Bft.

Technical Data
Max. weight of door/gate wing 500 kg
Max. width of door/gate wing 4.5 m
Motor voltage 230 v
Type of limit switch Work time
Impact reaction Hydraulic clutch
Slowdown During closing
U-Link No
Control unit Rigel 6
Board power supply 230 v
Power input 250 w
Useful rod stroke 390 mm
Maximum angle 123 °
Cycle time 28+slowdown s
Locking Solenoid lock
Release Reversible
Frequency of use Very intensive
Protection rating Ip55
Environmental conditions -10 ÷ 60 °c
Imperial measurements

The data shown are for information purposes only.

Max. weight of door/gate wing 1102.31 lbs
Max. width of door/gate wing 14.76378 ft
Motor voltage 230 v
Type of limit switch Work time
Impact reaction Hydraulic clutch
Slowdown During closing
Control unit Rigel 6
Board power supply 230 v
Power input 250 w
Useful rod stroke 15.354339 inch
Maximum angle 123 °
Cycle time 28+slowdown s
Locking Solenoid lock
Release Reversible
Frequency of use Very intensive
Protection rating Ip55
Environmental conditions 14 ÷ 140 °f
Accessories

Recommended accessories.

  • CLS Cod. D610180 Triangular release key l=52 mm. Triangular release key l=52 mm.

  • ME Cod. D111013 Control board for 12Vac solenoid lock for 230V automation systems. Control board for 12Vac solenoid lock for 230V automation systems.

  • ALCOR N Cod. D113706 00002 Control panel with dip switches and potentiometers for one or two 230V/300W operators for swing gates. Control panel with dip switches and potentiometers for one or two 230V/300W operators for swing gates.

  • NAT Cod. N999131 Adapter for 230V hydraulic operators for inserting the spiral cable protection sheath. Adapter for 230V hydraulic operators for inserting the spiral cable protection sheath.

  • ALPHA SD Cod. D113680 00002 Universal control panel with potentiometers for one 230V/500W single-phase operator. Universal control panel with potentiometers for one 230V/500W single-phase operator.

View all the accessories
