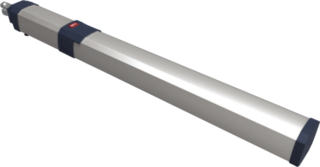

GIUNO ULTRA BT A20

Product code P935105 00001

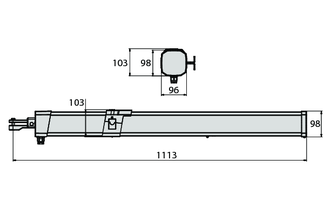

  • DIMENSIONAL DIAGRAM
technical design GIUNO ULTRA BT A
Technologies
  • The new coding system for direct cloning of remote controls.
    Based on microprocessor technology, this system allows the cloning of any MITTO remote control in a MITTO REPLAY remote control.
    In fact, the first remote control "teaches" the second one the correct code which is automatically saved in the receiver the first time it is used.
    Everything occurs at the highest levels of security thanks to the use of the Rolling Code safe transmission system.

  • The thrust required to operate safely.
    A smart torque management system based on the microprocessor technology of BFT control units.
    Acquiring data from several indicators, it updates the level of thrust required to perform the operation.
    D-Track also facilitates the installer in providing for the certifications required by law.
    Conventional control units do not "read" the exact position of the gate and consequently apply constant thrust levels, without ensuring stable sensitivity during the opening and closing operations.
    BFT control devices record the slightest variation in the gate or door force, for example due to differences in temperature or wear, constantly supplying the optimum torque to the motor.
    A conventional control unit could not detect these thrust variations, which would result in it indicating the presence of non-existent obstacles.
    The BFT system thus guarantees the maximum safety and perfect functioning of the equipment, no matter what the climactic and temperature conditions and degree of mechanical wear.

  • A precise, safe and reliable technology.
    Bft 24V technology ensures optimum performance with a precise adjustment of slowdown in closing and opening.
    Safety is another key aspect, ensuring the immediate stopping and reversal of movement in the presence of obstacles.
    The efficiency of the technology is a guarantee of the product's reliability.

Hydraulic operator with 24 V for hinged wings up to 2 m. 300 kg in weight and use very intensive. Manoeuvre time 14 s.

PLUS
  • Control unit with display: for easy scenario programming.U-Link: full interconnectivity with other devices via Bluetooth, RS-485, TCP/IP.

  • Selectable block system: the operators can be converted to reversible, with opening block, closing block or double block. All this by simply turning a key.

  • New magnetic limit switch: together with D-Track technology, offers extreme precision of maneuver and positioning. Double sensor system to define in detail end of the maneuver slowdowns. High reliability against dust, water and ice.

Recommended control panel
THALIA P G
Assistance

Attention: To benefit from the official warranty on Bft products purchased online, you must check that the retailer is approved by Bft.

Technical Data
Max. weight of door/gate wing 300 kg
Max. width of door/gate wing 2 m
Motor voltage 24 v
Type of limit switch Magnetic
Impact reaction D-track
Slowdown Yes
U-Link No
Control unit Thalia p
Board power supply 230 v
Power input 90 w
Useful rod stroke 270 mm
Maximum angle 110 °
Cycle time 14 s
Locking Selectable in opening/closing
Release Triangle key
Frequency of use Very intensive
Protection rating Ip55
Environmental conditions -20 ÷ 60 °c
Imperial measurements

The data shown are for information purposes only.

Max. weight of door/gate wing 661.386 lbs
Max. width of door/gate wing 6.56168 ft
Motor voltage 24 v
Type of limit switch Magnetic
Impact reaction D-track
Slowdown Yes
Control unit Thalia p
Board power supply 230 v
Power input 90 w
Useful rod stroke 10.629927 inch
Maximum angle 110 °
Cycle time 14 s
Locking Selectable in opening/closing
Release Triangle key
Frequency of use Very intensive
Protection rating Ip55
Environmental conditions -4 ÷ 140 °f
Video
Giuno Ultra BT
Swing gate 24V hydraulic operator for very intensive use
Show
Accessories

Recommended accessories.

  • ARB LUX Cod. N733426 Adjustable front and rear bracket for LUX operator. Adjustable front and rear bracket for LUX operator.

  • THALIA Cod. D113745 00002 Control panel with display for one or two 24V electromechanical operators for swing gates. Control panel with display for one or two 24V electromechanical operators for swing gates.

  • BBT BAT Cod. P125020 Set of backup batteries for THALIA and THALIA P. Set of backup batteries for THALIA and THALIA P.

  • CABLE LX BT Cod. N999417 Cable 1603 for PHOBOS/IGEA - 100 m coil. Cable 1603 for PHOBOS/IGEA - 100 m coil.

  • ARB LUX G Cod. N733474 Adjustable front and rear bracket for LUX G operator. Adjustable front and rear bracket for LUX G operator.

  • CLS Cod. D610180 Triangular release key l=52 mm. Triangular release key l=52 mm.

  • PL LX BT Cod. N999443 Anchor plate for welding the mountings to masonry pillars for LUX BT, GIUNO BT A. Anchor plate for welding the mountings to masonry pillars for LUX BT, GIUNO BT A.

View all the accessories
