HIDE SW

Motor and kit for the automation of swing gates, totally concealed

catalog (PDF)

Motor and kit for the automation of swing gates, totally concealed

Disappearing completely, it enables keeping the look of the gates "clean" while remaining a fundamental element of operational performance. The Hide range includes an entire outfit of accessories needed to install the gate completely, such as the top and bottom hinges. Residential 24V operator for gates of up to 150 kg in weight, able to integrate completely within the jambs of swing gates.

Motor and kit for the automation of swing gates, totally concealed

Main features

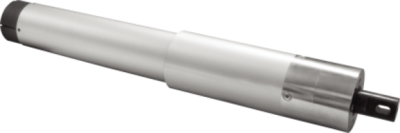

Its cylindrical shape of maximum outside diameter 80mm allows it to be installed rapidly in the jamb of the leaf. The pre-wiring enables fast, user-friendly electrical connection to the control unit.

Hide SW is able to withstand the most severe weather conditions and wind, allowing operation even of solid gates equal to 3m² at up to 120 km/h (class 2, EN13241).

The LIBRA CB HIDE control unit is able to optimize the operator functions, allowing separate management of the motors in the times for working, torque control and slowing down, calibrating to the actual needs thanks to the built-in "D-Track" function.

Technologies

24V

A precise, safe and reliable technology Bft 24V technology ensures optimum performance with a precise adjustment of slowdown in closing and opening. Safety is another key aspect, ensuring the immediate stopping and reversal of movement in the presence of obstacles. The efficiency of the technology is a guarantee of the product's reliability.

ER - READY

The new coding system for direct cloning of remote controls Based on microprocessor technology, this system allows the cloning of any MITTO remote control in a MITTO REPLAY remote control. In fact, the first remote control "teaches" the second one the correct code which is automatically saved in the receiver the first time it is used. Everything occurs at the highest levels of security thanks to the use of the Rolling Code safe transmission system.

Dynamic Path Tracking

The thrust required to operate safely. A smart torque management system based on the microprocessor technology of BFT control units. Acquiring data from several indicators, it updates the level of thrust required to perform the operation. D-Track also facilitates the installer in providing for the certifications required by law. Conventional control units do not "read" the exact position of the gate and consequently apply constant thrust levels, without ensuring stable sensitivity during the opening and closing operations. BFT control devices record the slightest variation in the gate or door force, for example due to differences in temperature or wear, constantly supplying the optimum torque to the motor. A conventional control unit could not detect these thrust variations, which would result in it indicating the presence of non-existent obstacles. The BFT system thus guarantees the maximum safety and perfect functioning of the equipment, no matter what the climactic and temperature conditions and degree of mechanical wear.

EE LINK

For fast and safe programming. EELINK is a system developed by BFT which, by means of connection to handheld programmers (Unipro, Uniradio and Proxima), makes it possible to transfer data from automatic systems to PCs and vice versa. Thus EEdbase or U-base, the databases of the information stored in the installed systems, are constantly updated. Thanks to this software it possible to associate the necessary personal details with each system: owner's address and details, name of maintenance technician, names of every remote control holder, etc. With EElink, just press a few buttons to easily manage the customer base or preventive maintenance. Even operations that were once complex become easier: for example, reconfiguring the control unit or the radio receiver in case of replacement or the setup of a control panel, starting from a standard or custom configuration.

Products list

    Disappearing irreversible electromechanical operator 24 V for swing gates weighing up to 150 kg and 2 m long.

      24 V concealed electromechanical operator for swing gates up to 150 kg in weight and 2 m in length.

      Accessories

      RADIUS LED BT A R1
      D114093 00003

      Flashing light with incorporated antenna for motors with 24 V power supply.

      RADIUS LED BT A R1 W
      D114168 00003

      Flashing light with incorporated antenna for motors with 24 V power supply. White flashing light.

      RADIUS LED BT A R0
      D114094 00003

      Flashing light without incorporated antenna for motors with 24 V power supply.

      COMPACTA A20-180
      P111782

      Pair of photocells adjustable 180° horizontally. 20 metre range. 12-33 VAC/15-35 VDC power supply.

      EBP AC A 230V 50/60HZ
      P123032 00001

      230V vertical electric lock.

      EBP AC A 120V 50/60Hz
      P123032 00002

      120V vertical electric lock.

      HIDE HINGE SUP
      N999526

      Top hinge for the installation of HIDE SW series operator

      HIDE HINGE INF
      N999524

      Bottom fixed hinge for the installation of HIDE SW series operator

      BOX
      N574039

      Wall cabinet for release with steel cable and electric control; cable not included

      BT BAT
      P125005

      Back-up battery kit for HYDRA N, ARGO, VENERE BT A DIS
