IGEA LB

Product code P935077 00001

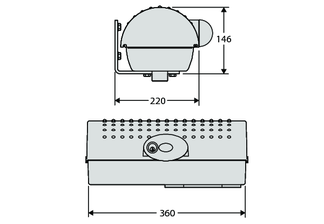

  • DIMENSIONAL DIAGRAM
technical design IGEA LB

Electromechanical operator for industrial folding doors (max. two panels) with panel length 2 m. door weight 250 kg and use Semi intensive.

PLUS
  • Control unit with programming display, automatic setting menu, simplified programming and virtual encoder in 24V version.

  • Built-in, adjustable, single-cable electromechanical limit switch system.

  • Removable steel cable release system.

Recommended control panel
RIGEL 6 220-230V 50/60HZ
Compatible control panel
ALTAIR P
ALENA SW2
Assistance

Attention: To benefit from the official warranty on Bft products purchased online, you must check that the retailer is approved by Bft.

Technical Data
Type of limit switch Electromechanical
Impact reaction Electronic clutch
Slowdown No
U-Link No
Control unit Rigel 6
Power input 300 w
Locking Mechanical
Release External accessory with personal key
Frequency of use Semi intensive
Protection rating Ip4x
Environmental conditions -15 ÷ 60 °c
Max. door/gate weight 250 kg
Nominal voltage 230 v
Panel length 2 m
Imperial measurements

The data shown are for information purposes only.

Type of limit switch Electromechanical
Impact reaction Electronic clutch
Slowdown No
Control unit Rigel 6
Power input 300 w
Locking Mechanical
Release External accessory with personal key
Frequency of use Semi intensive
Protection rating Ip4x
Environmental conditions 5 ÷ 140 °f
Max. door/gate weight 551.155 lbs
Nominal voltage 230 v
Panel length 6.56168 ft
Accessories

Recommended accessories.

  • SEB Cod. N733020 External key release for BERMA, FORB, IGEA LB and IGEA LB BT. External key release for BERMA, FORB, IGEA LB and IGEA LB BT.

  • THALIA Cod. D113745 00002 Control panel with display for one or two 24V electromechanical operators for swing gates. Control panel with display for one or two 24V electromechanical operators for swing gates.

  • ALTAIR P Cod. D113703 00002 Control panel with display for one or two 230V/300W operators for swing gates and industrial folding doors. Control panel with display for one or two 230V/300W operators for swing gates and industrial folding doors.

  • ALENA SW2 Cod. D113811 00004 Control panel with slow-down, dip switches and potentiometers for one or two 230V 400W+400W, operators for swing gates and industrial...
    Control panel with slow-down, dip switches and potentiometers for one or two 230V 400W+400W, operators for swing gates and industrial folding doors.
